How to connect directly to my embroidery machine in Hatch 2?

How to connect directly to my embroidery machine in Hatch 2?

Some users want to connect their embroidery software directly to the machine. This means you can click 'transfer' and the file will go directly to the machine without the need for a USB stick.


IMPORTANT: If your embroidery machine can be seen as an external drive in Windows Explorer, you may be able to directly connect send designs from Hatch Embroidery to the machine.


Not all machines have this capability as most now have a USB to save the design file on and removed this capability.

If your machine requires a special data cable to transfer or special machine drivers, most likely you will not be able to connect directly. Wilcom offers commercial-grade software that may be able to do this for your machine. See here

Try to direct connect with Hatch Embroidery.

1. Connect your embroidery machine to the computer with the cable.

2. Open Windows Explorer and check if you can see the machine as an external drive

If so.....then you may be able to connect directly with Hatch Embroidery and proceed to step 3 below.

If not....then your machine is not capable of direct connections.

3. From within Hatch Embroidery click on the "Transfer" icon

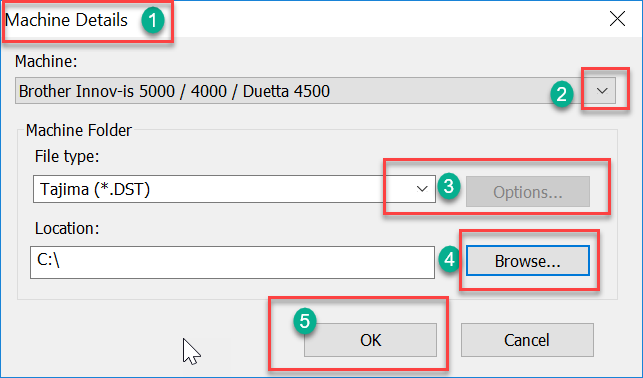

4. This dialog will open:  (1)



5. Select your "Machine" or a machine from the same brand, or select "Others" (2)

6. Select the "File type" your machine uses. This is your "stitch file" (3)

7. Select the "Location" of your machine as shown in Windows Explorer (4)

8. Click "OK"

If your machine can be connected directly to Hatch Embroidery, it will now be connected and you can send designs directly to your embroidery machine.



What if I cannot connect directly to my machine?

Firstly see how your machine accepts the stitch files. Usually this is via a USB stick, which means you can "export" your design files directly to the USB stick and plug it into your embroidery machine.

Some embroidery machines use a reader box. You will then need to follow the directions included with that device.



*If you are using Hatch 3, please click this link for the steps.
